The Ultimate Guide to Angle Plates for Precision Engineering

2024-03-26Machinery From：LEAVE INDUSTRIAL

At LEAVE INDUSTRIAL CO., LTD., we pride ourselves on our unwavering commitment to excellence in the world of precision engineering. Our extensive experience and dedication to quality have positioned us as a leading provider of industrial fixtures and components, with angle plates being a standout product in our wide range. These essential tools play a critical role in ensuring accuracy and efficiency in manufacturing processes, embodying our dedication to delivering only the best to our clients. Whether for machining, inspection, or assembly, our angle plates are designed to meet the rigorous demands of today's industries, proving that at LEAVE INDUSTRIAL CO., LTD., precision is not just a goal; it's our promise.

What Are Angle Plates?

Angle plates are indispensable tools in precision engineering, used to hold workpieces in a precise angle for machining, inspection, or assembly processes. These robust tools are designed to facilitate complex manufacturing tasks, enabling engineers and machinists to achieve precise angles and alignments with ease.

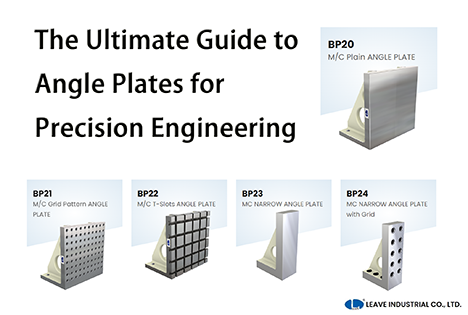

Types of Angle Plates

At LEAVE INDUSTRIAL CO., LTD., we understand that every project has unique requirements. That's why we offer a diverse lineup of angle plates, crafted to accommodate any machining necessity:

M/C Grid Pattern ANGLE PLATE: Crafted from high-quality Cast Iron FC300 and normalized for superior durability, the M/C Grid Pattern ANGLE PLATE is meticulously designed for use with both HMC and VMC. It boasts alignment bushings and thread inserts at each hole, ensuring seamless adaptation to standardized jig components, thereby streamlining the setup process and enhancing overall precision.

M/C Plain ANGLE PLATE: Constructed from robust Cast Iron FC300 and normalized to ensure longevity, the M/C Plain ANGLE PLATE is tailored for HMC/VMC setups. This plate allows for the creation of custom hole patterns, offering unmatched versatility and precision in machining tasks.

M/C T-Slots ANGLE PLATE: Made from heat-treated Cast Iron FC300 for enhanced durability, the M/C T-Slots ANGLE PLATE is engineered for optimal performance in HMC/VMC applications. It features strategically placed T-Slots in two directions, facilitating easy integration with standardized jig components and thereby increasing machining flexibility.

MC NARROW ANGLE PLATE: The MC NARROW ANGLE PLATE is produced from Cast Iron FC300, normalized for heat treatment to guarantee enduring durability. Designed with HMC/VMC applications in mind, its compact structure is perfectly suited for accepting specialized hole patterns for jigs, thereby maximizing flexibility and precision in machining operations.

MC NARROW ANGLE PLATE with Grid: Expertly crafted from Cast Iron FC300 for HMC/VMC applications, the MC NARROW ANGLE PLATE with Grid incorporates a grid pattern complete with alignment bushings and thread inserts. This design significantly enhances adaptability and precision in machining, making it an indispensable tool for achieving meticulous results.

Applications of Angle Plates

Angle plates are versatile tools used across various industries, including aerospace, automotive, and electronics. Their applications range from setting workpieces at precise angles for machining operations to serving as fixtures in quality assurance processes.

Why Choose LEAVE INDUSTRIAL CO., LTD. for Angle Plates?

Choosing LEAVE INDUSTRIAL CO., LTD. for your angle plates means selecting a partner dedicated to precision and quality. Our angle plates are crafted from the highest quality materials, ensuring durability and reliability for any project. Here are just a few reasons why our customers trust us for their precision engineering needs:

Expertise: With years of experience in the industry, our team possesses the knowledge and skills to provide solutions that meet and exceed your expectations.
Quality Assurance: Our commitment to quality is evident in every product we offer, ensuring that you receive only the best for your projects.
Customization: We understand that each project is unique. That's why we offer customized solutions tailored to your specific requirements.

Enhance Your Manufacturing Process with LEAVE INDUSTRIAL CO., LTD.

At LEAVE INDUSTRIAL CO., LTD., we're not just suppliers; we're your partners in precision engineering. Our angle plates are designed with your manufacturing success in mind, offering the precision, reliability, and quality you need to stay ahead in a competitive industry.

Uncover the transformative potential of our angle plates for your manufacturing processes. Explore our product range and delve into our dedication to precision engineering excellence by visiting our website or reaching out to us directly.
